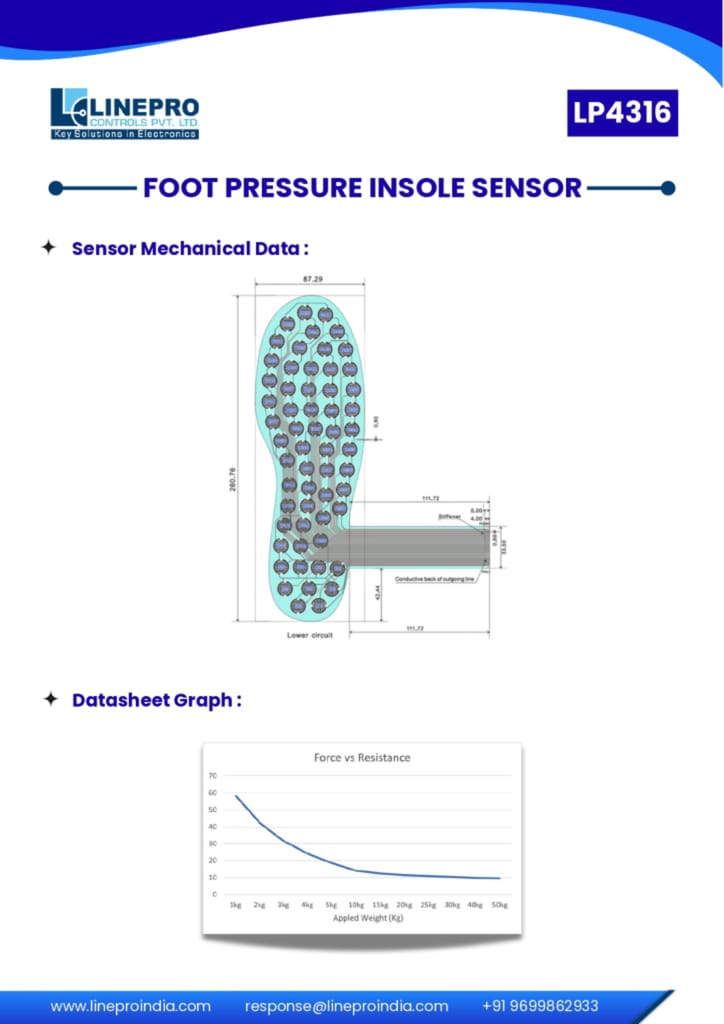

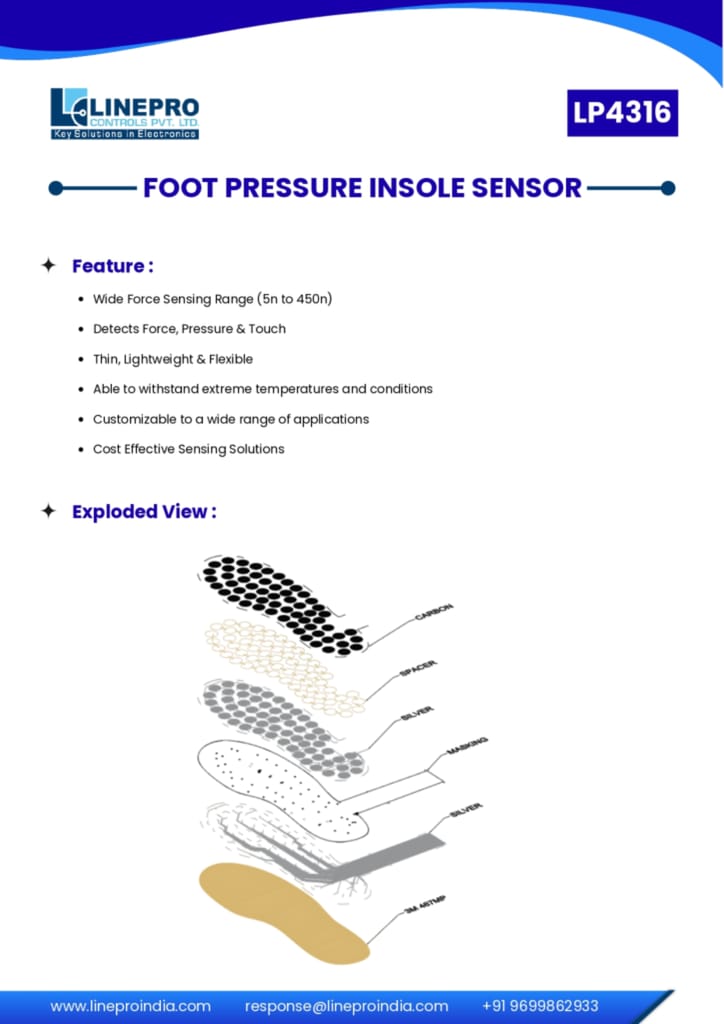

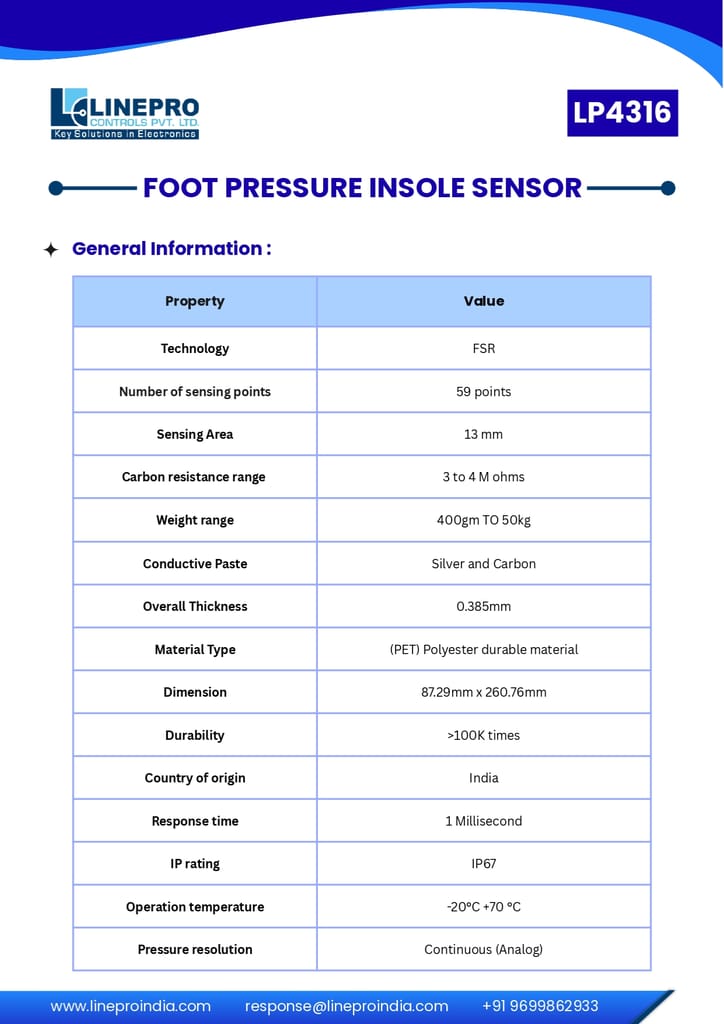

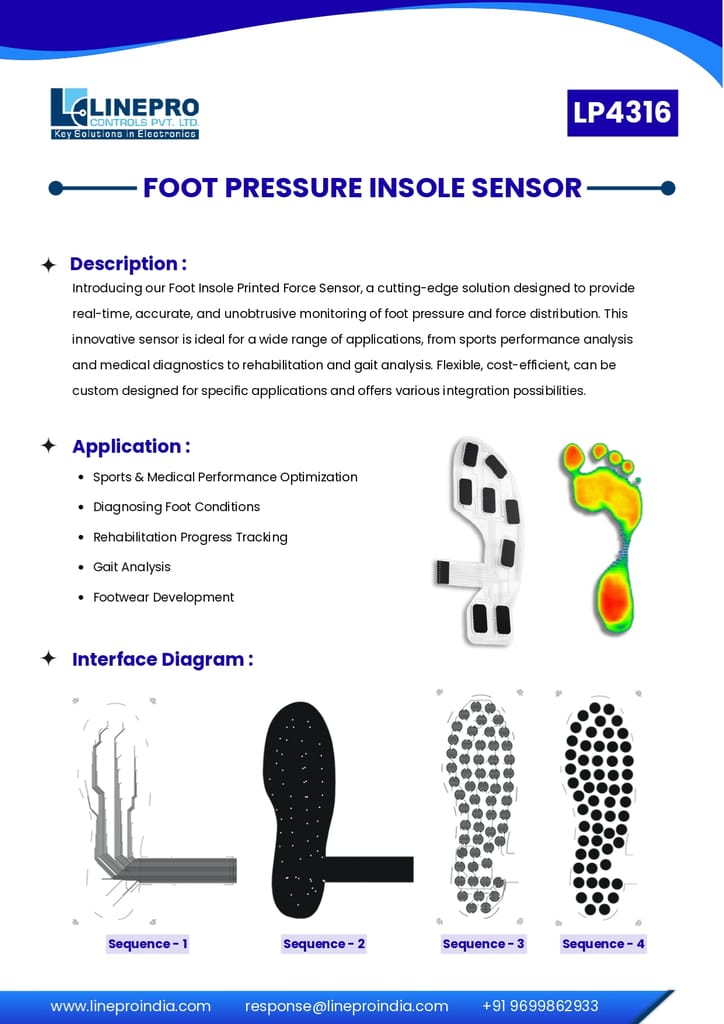

Product Description: The LP4316 Foot Pressure Insole Sensor is an ultra-thin, flexible FSR-based printed sensor with 59 sensing points for measuring foot pressure and force distribution. It provides continuous analog output, supports loads from 400 g to 50 kg, and responds within 1 ms. Built on a PET substrate with silver and carbon layers, it is 0.385 mm thick, IP67 rated, and suitable for gait analysis, rehabilitation, and sports monitoring. Key Feature: FSR-based printed insole pressure sensor 59 sensing points for multi-zone pressure detection Ultra-thin and flexible construction (0.385 mm) Continuous analog pressure output Fast response time of 1 ms Lightweight and comfortable for in-shoe applications Durable PET material with silver and carbon layers IP67 rated for dust and water resistance Long operational life (>100,000 cycles) Product Deatils: Model: LP4316 Technology: Force Sensitive Resistor (FSR) Number of sensing points: 59 Sensing area: 13 mm Force detection range: 400 g to 50 kg Carbon resistance range: 3–4 MΩ Output type: Continuous analog Response time: 1 millisecond Overall thickness: 0.385 mm Material: PET (Polyester) Conductive paste: Silver and Carbon Dimensions: 87.29 mm × 260.76 mm Durability: More than 100,000 operations Operating temperature: -20°C to +70°C IP rating: IP67 Country of origin: India
