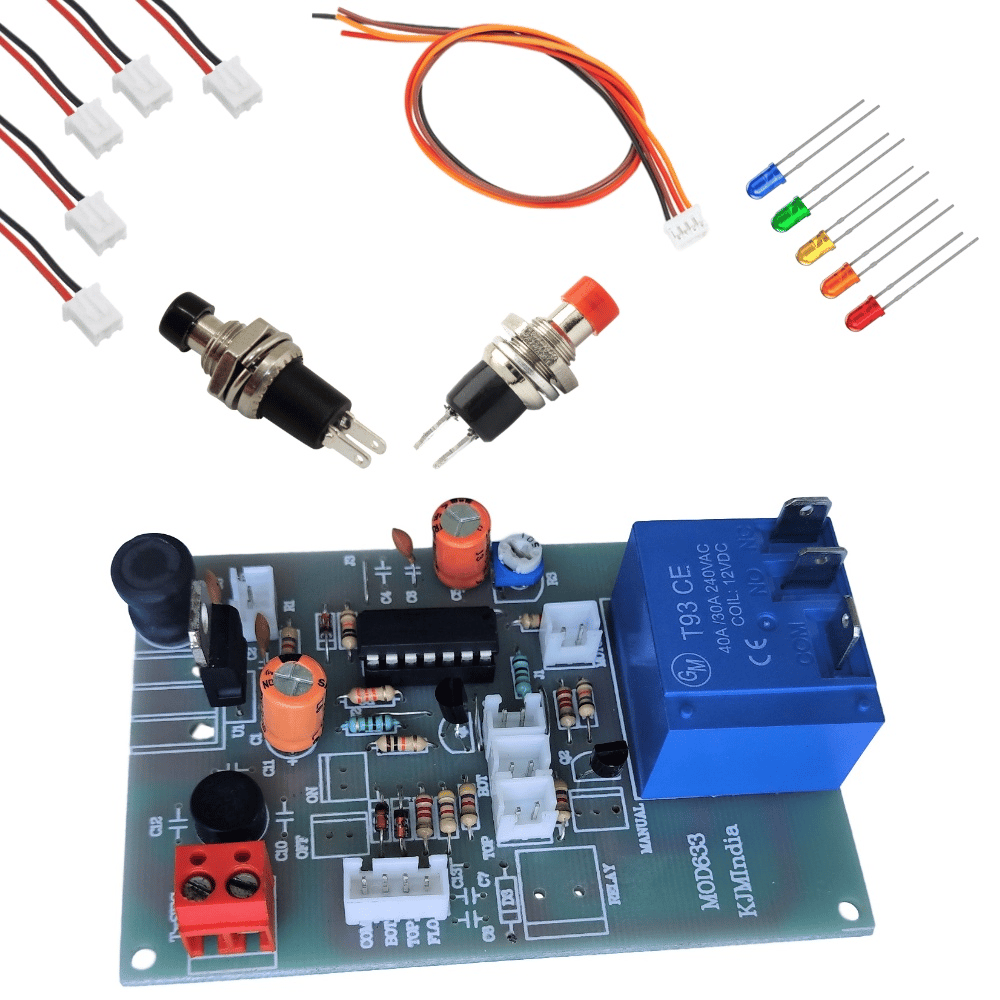

Package Includes:
Ready-made board
12V, 40A Relay
5 Leds of different color of 3mm size
5 two pins RMC wires
1 four pin RMC wire for sensor
Mandatory Requirements:

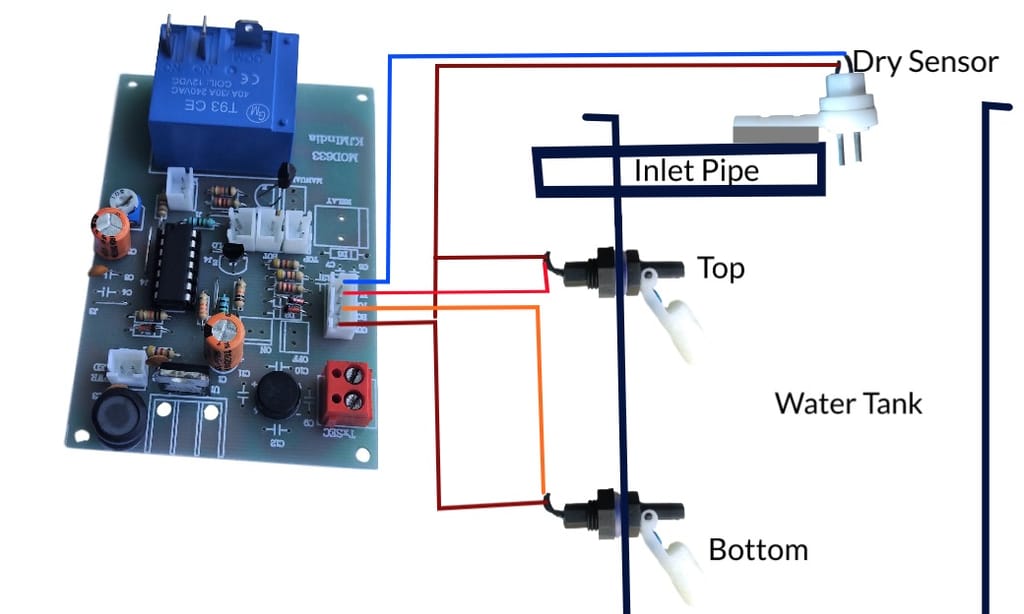

You will need two magnetic float switches (normally open type) or 2 SS metal sensors and one dry run sensor.

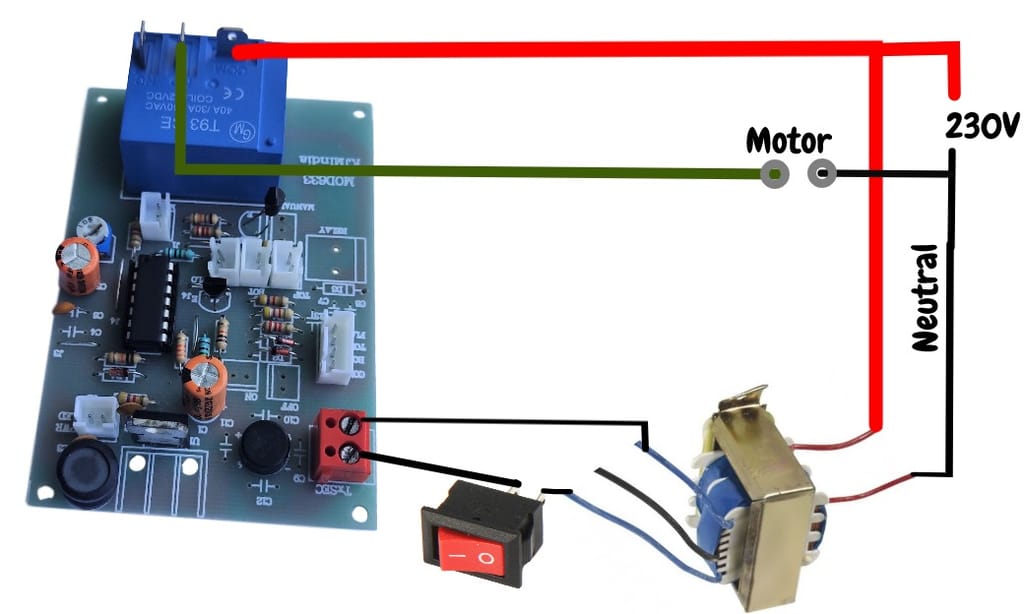

Transformer to be used: 0 -12V or 0 – 15V or 0-18v or 7.5 – 0 – 7.5V or 9-0-9v, 1A
Board Size: Approx. 9.5 x 6.5 cm
Fully Automatic Water Level Controller Circuit Board With Dry Run Protection
