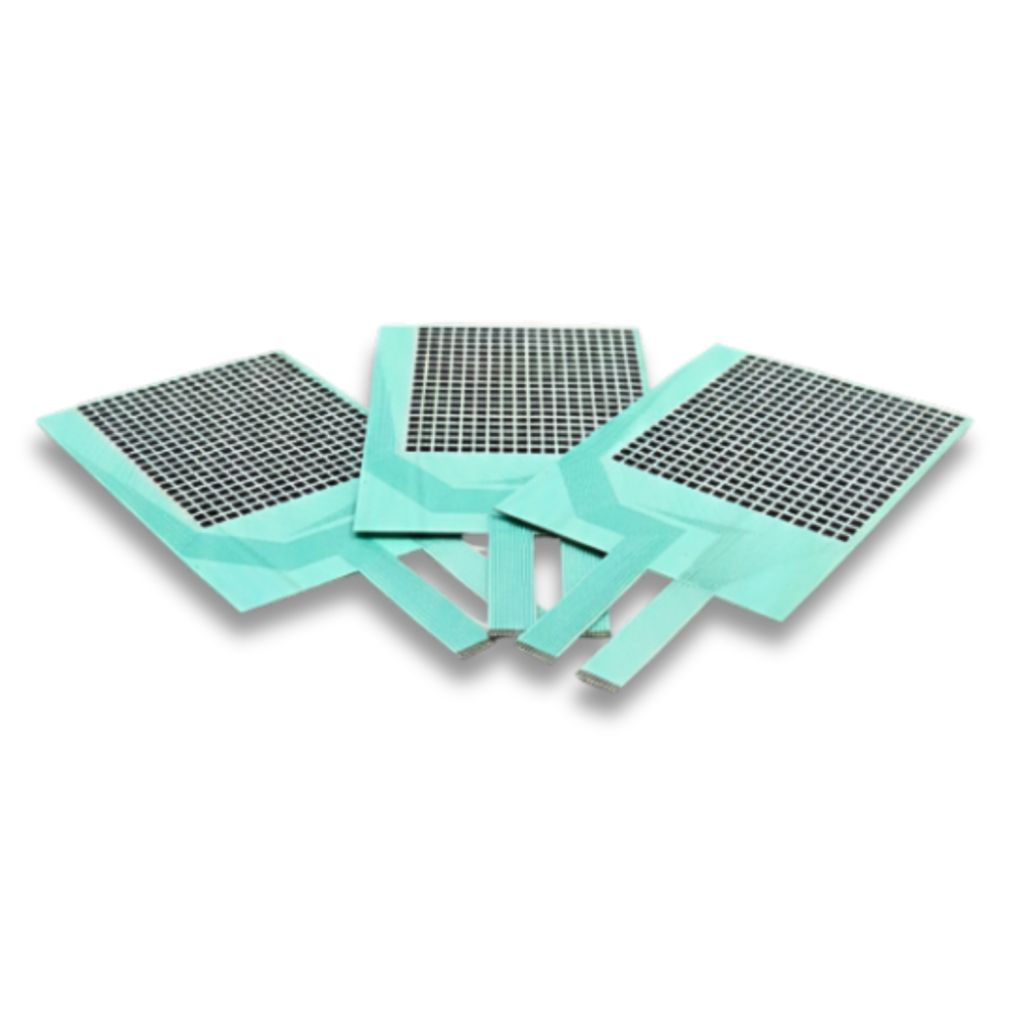

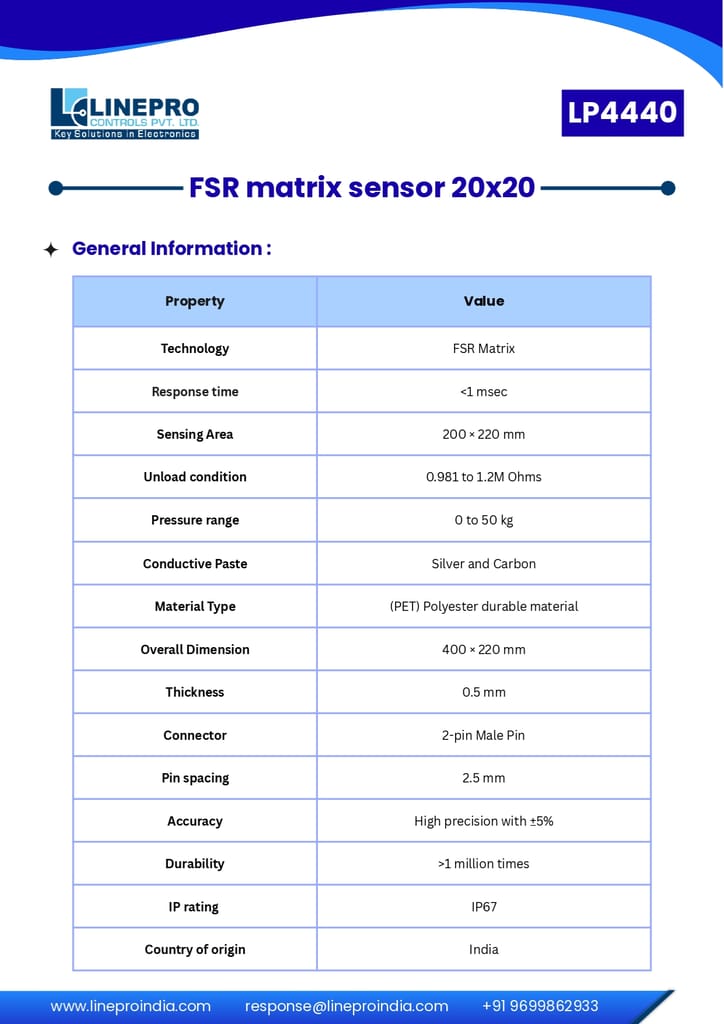

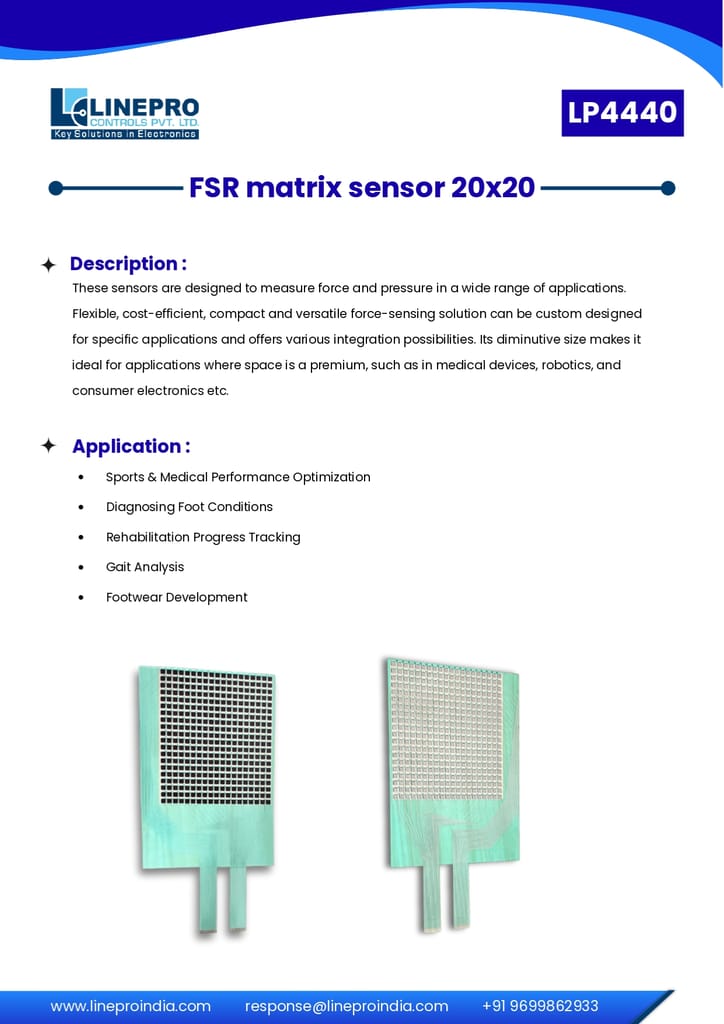

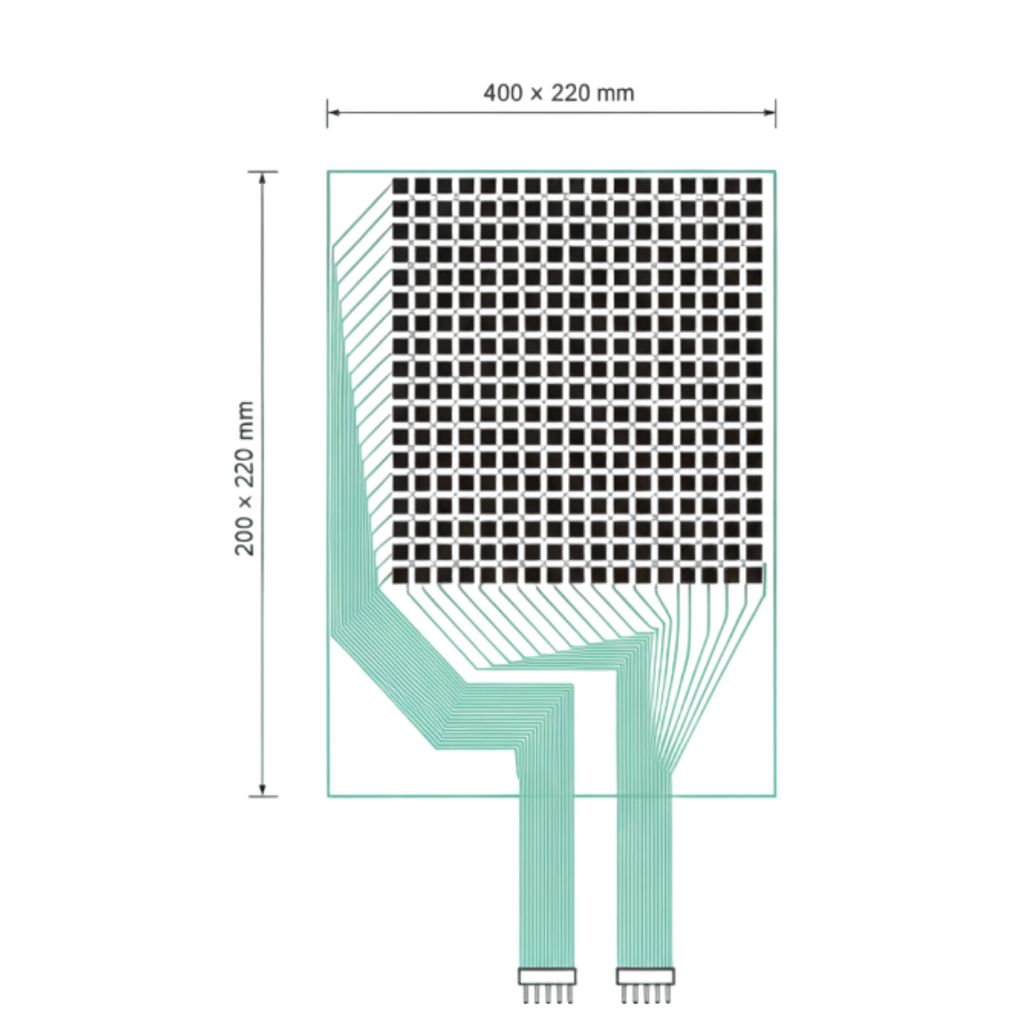

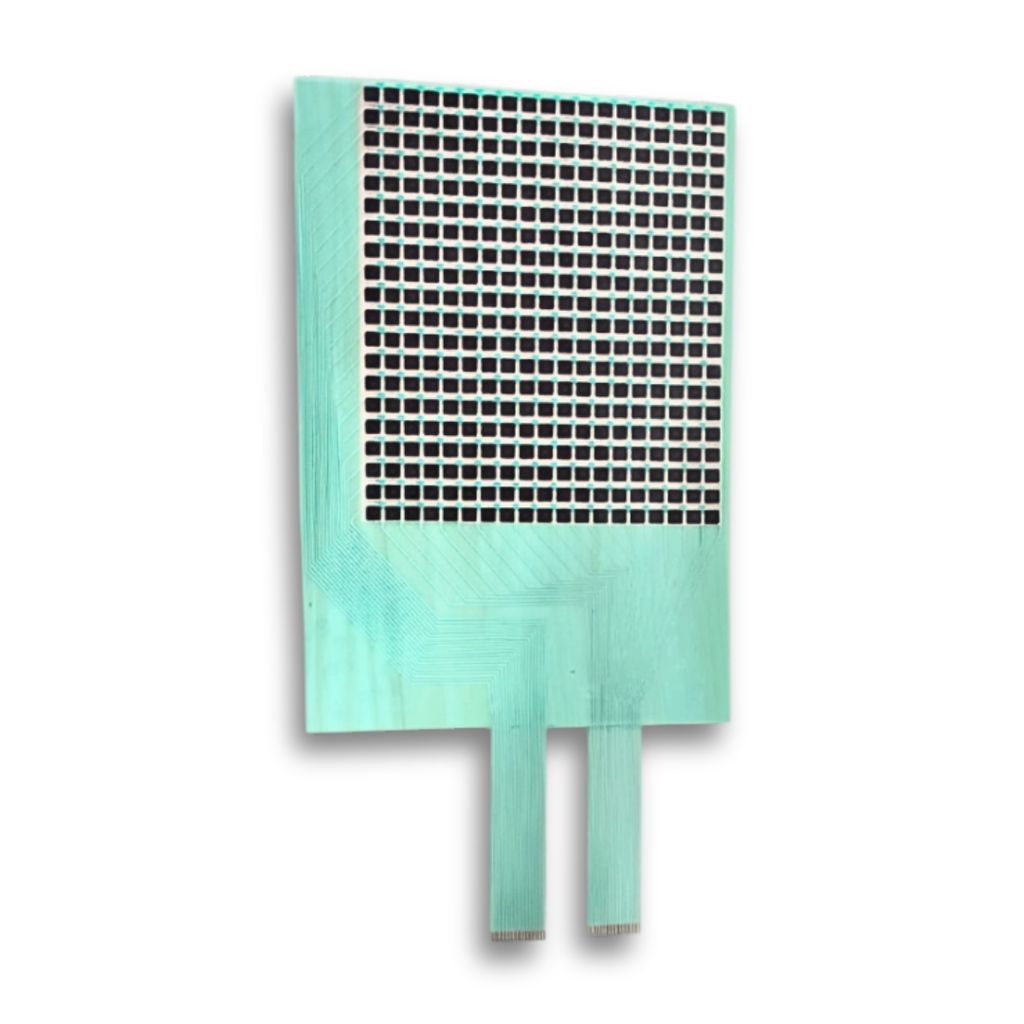

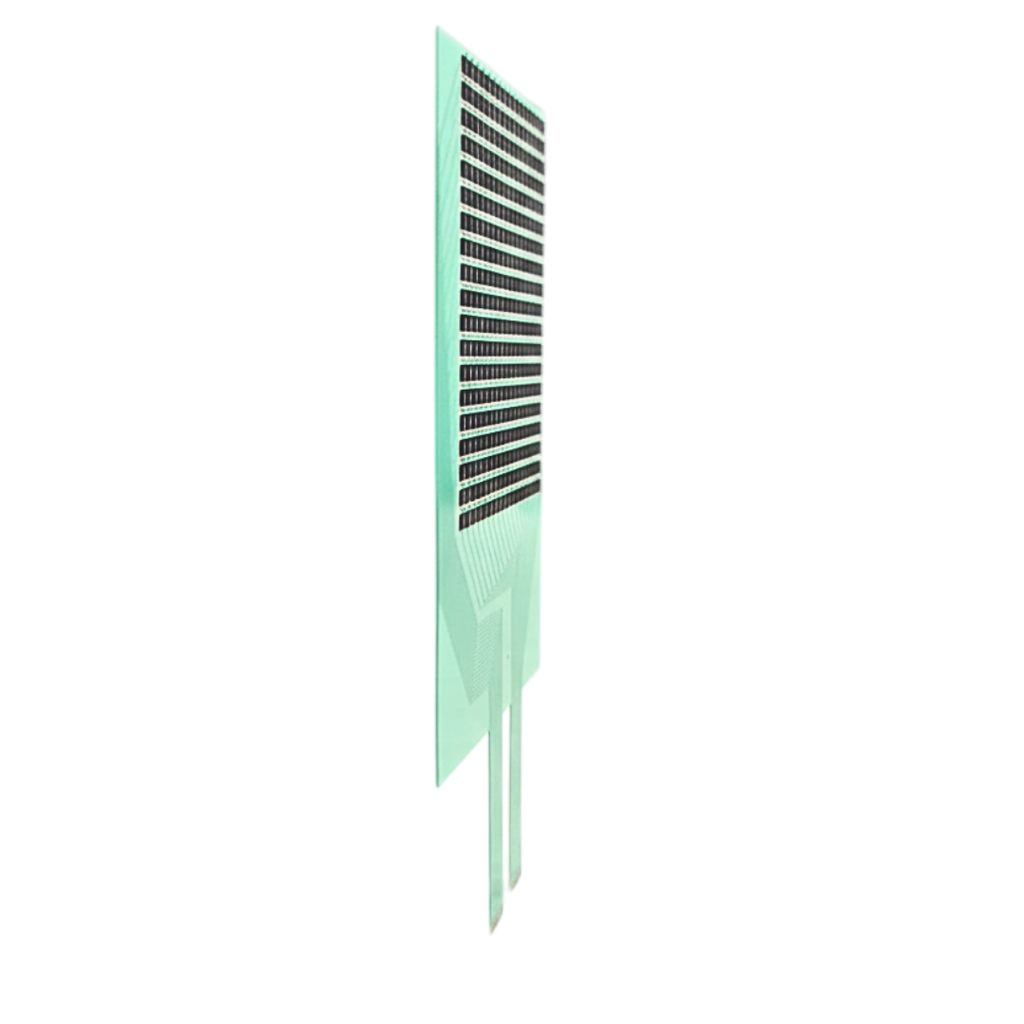

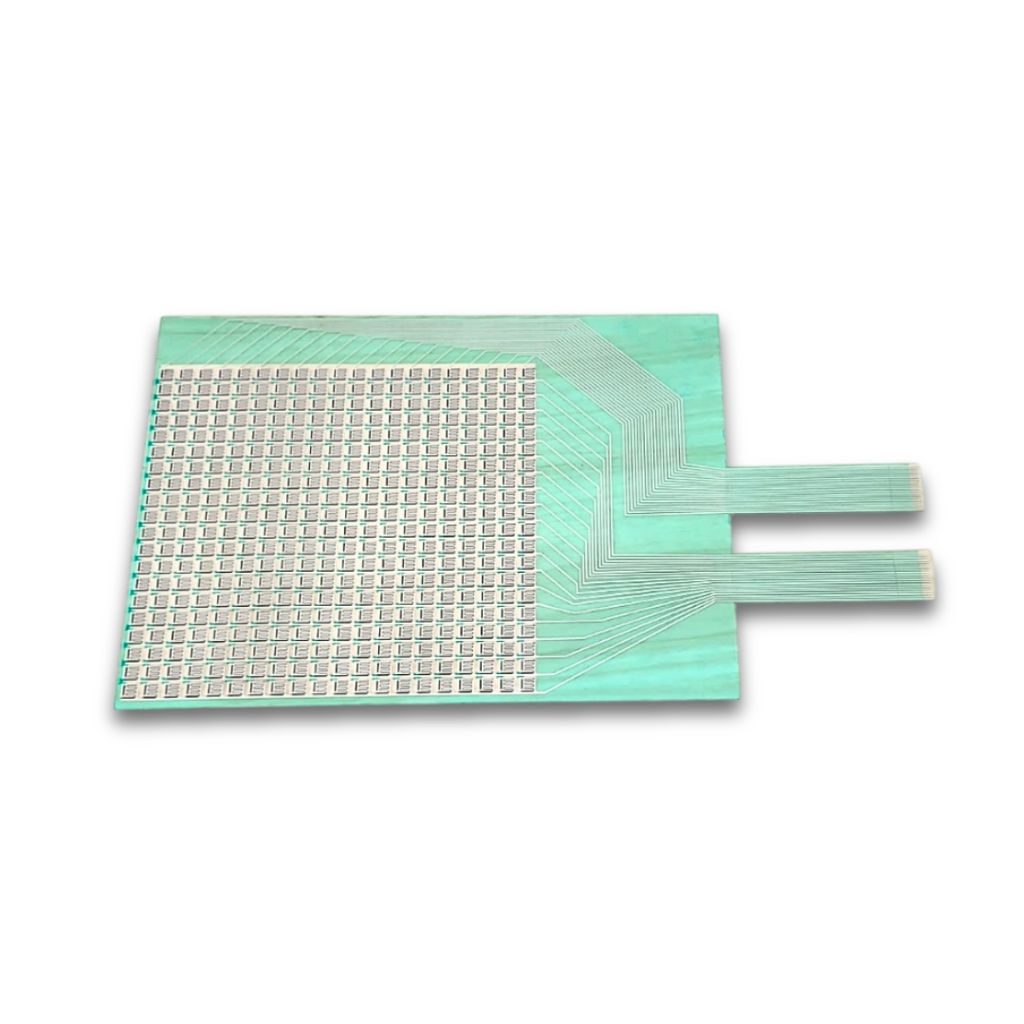

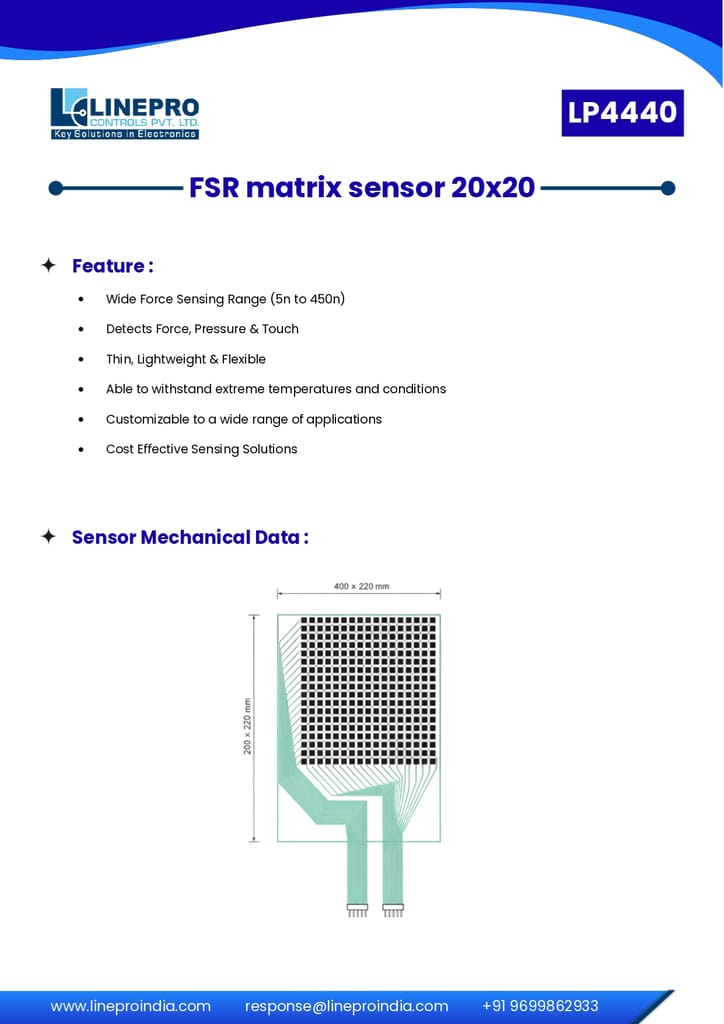

Production Description: The FSR Matrix Sensor (20 × 20) is a flexible force-sensitive resistor array designed for measuring force and pressure distribution across a defined surface. It consists of 400 sensing points arranged in a 20 × 20 matrix, enabling accurate detection of applied force and pressure patterns. Manufactured on a durable PET substrate with carbon-based resistive material and silver conductive traces, the sensor offers fast response, high durability, and reliable performance for medical, sports, and industrial sensing applications. Key Features: 20 × 20 force-sensing matrix (400 sensing points) Enables pressure and force distribution measurement Thin, lightweight, and flexible construction Fast response time Carbon resistive sensing layer with silver conductive traces High durability for repeated mechanical loading Flexible tail connectors for easy integration Suitable for medical, sports, and industrial applications Product Details: Sensor Type: Force Sensitive Resistor (FSR) Matrix Matrix Configuration: 20 × 20 Number of Sensing Points: 400 Active Sensing Area: 220 × 220 mm Overall Dimensions: 400 × 220 mm Sensing Technology: Resistive (FSR) Response Time: < 1 ms Force Range: 5 N to 450 N Pressure Range: 0 – 71 PSI (0 – 5 kg/cm²) Resistance Range: 0.981 – 1.2 MΩ Sensing Material: Carbon Conductive Material: Silver Substrate Material: PET (Polyester) Thickness: Approx. 0.5 mm Connector Type: Dual flexible tail connectors Pin Spacing: 2.5 mm Accuracy: ±5% Durability: > 1 million actuations IP Rating: IP67 (when properly encapsulated) Country of Origin: India
